Voron-Tap Build Log

Voron 2.4

I'm still having an issued when leveling the z gantry. The next thing i have in my mind were replacing with voron tap. Waiting for the electronics parts arrive.

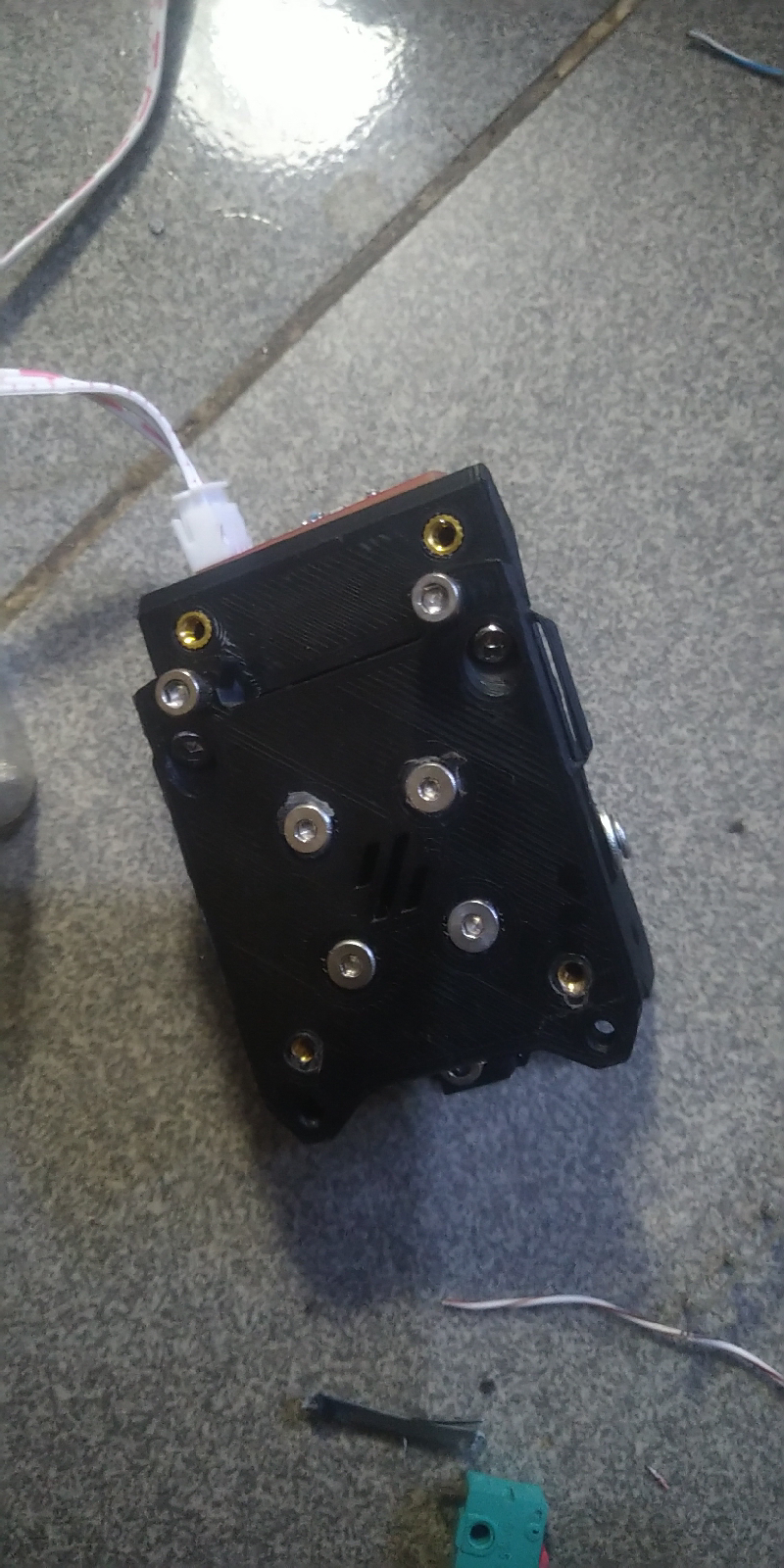

The printed parts were ready.

8-April 2023 i bought optical endstop from Solarperfect. the idea is, desolder the part i need,..which is the sensor, added longer wire and connect again to the board and test it. All thought there is solid tutorial about it, finding the right sensor with the same type is the hard part... So i begin with the typical endstop and see if it work.

Stupid fact:

Took an hour or less to desolder the sensor carefully so i not damaging any thing on the process...and then you realize, you can took off the back plastic cover from it. The black plastic just a cover and the parts inside is the two sensor....duh!

So, just took off the black cover, clip the sensor legs, rewiring it orderly and your done...save you time.

Everything work fine and perfectly connected and waiting to the next phase.

09-April-2023

Waiting the MGN9 from chinaa.

15-Apr-2023

MGN9 arrived. Assamble the part, then i notice the sensor board blocking the toolhead.

Pending progress.

I've to resolder and rewiring the sensor, print another voron-tap model and buy 6mm and 5mm flat headed hex screw.

Saturday, March 25, 2023

Stealthburner

March,25-2023

First layer is crucial,if its not stick to bedplate it will defect the part look and perhaps function.

Adding light near by the extrution help us to watch the first layer as it print and tweak or adjust the nozzle height.

I use RGB light strip that i have from the chamber light. Carefully cut it and slide it to place on the bottom.

the logo light place holder(back side)

logo light place holder(front side)

Wiring it was easy, need 3 wire (5v, GND and Din) see the arrow on the RGB light strip. Note: Din = Data In, Data from mainboard to rgb light mark with arrow. Dout or Data Out is to connecting the other RGB light and so on.

The plan is to connect at the end of my existing chamber light, and hope it work.

March,26-2023

Done wiring and test it

need to rewiring the toolhead. Look great
